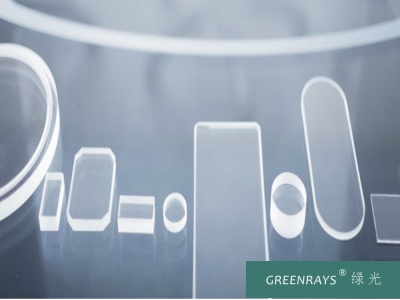

1.1mmT Borofloat glass

Introduction:
We provide colorful lighting industry.Lighting system for complex demands can bear high temperature,

such as bad, still can guarantee the stability of lighting system.We supply short BOROFLOAT® 33

are widely used in the LED chip, lighting equipment system filter, insulation slices, LOGO,

high-power lighting protection and auto lamp protection glass.


Product features:
a)High heat resistance
b)The whole band range has excellent transmission performance
c)Good resistance to strong alkali
d)Excellent surface shape accuracy


Glass technical parameters:

a)Material: BOROFLOAT® 33,TEMPAX®
b)Thickness:1.0mm,1.5mm ,2mm ,3mm 4mm 6mm 8mm 10mm -20mm (Tolerances+ / - 0.02 mm)
c)standard size:Φ4",Φ5",Φ6",85´85mm,105mm´105mm,150´150mm (other size can be customized)
d)MIL:60/40
e)Roughness (Ra) Less-1.5nm

f)TTV Less 0.01mm

g)Chamfer C0.05~0.2mm



Product main technical parameters:

Technical parameters:

Density (25 )

2.2g/cm2

Expansion coefficient(ISO 7991)

3.25´10-6k-1

Transmittance

91%

Softening point

820

Short time use less 10h

550

Long time use more 10h

450

Refractive index
(587.6nm)

1.47140

Knoop hardness

480


关于我们

       公司批量供应旭硝子、板硝子、电气硝子等进口光学玻璃产品及国产铝硅、硼硅等玻璃产品,同时提供光学玻璃的加工服务。
       公司引进激光切割机、清洗机、CNC雕刻机及蚀刻技术,能为客户提供厚度≧0.1mm,外形尺寸≧Φ2"的玻璃晶圆(Glass wafer),应用于CMOS、CCD传感器、集成电路及微机械元件封装(MEMS)、通信与数据处理、光学、电子产品、半导体晶圆衬底、芯片、LED等领域 。
       我们将为您提供良好的产品及服务!
